PS-4100 Fuel Lift Pump

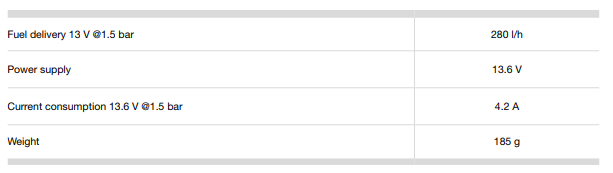

Features

Fuel delivery 13 V @1.5 bar:

280 l/h

Power supply:

13.6 V

Current consumption 13.6 V @1.5 bar:

4.2 A

Weight:

185 g

Product Overview

Fuel Lift Pump
1.5 bar - 280 l/h

MAIN FEATURES

• Up to 280 l/h fuel delivery @1.5 bar
• Special design and surface treatment for reliable operations

DESCRIPTION

The PS-4100 is a compact, lightweight, low pressure and self-priming Fuel Pump for catchtank filling. The presence of a Non-return valve allows to prevent catchtank emptying. Provided with a rugged DC motor for reliable operations with limited current absorption. Special design and surface treatment of moving parts allow reliable operations even in case of partially-empty tank. A sock filter must be applied
to the inlet port. Inlet and outlet ports are customizable.
