Features
Product Overview
From 1 to 25 MPa
MAIN FEATURES
• 1 to 25 MPa applications
• < 2 ms response time
• Absolute pressure reference type
• 5 V power supply
DESCRIPTION
This sensor is designed to measure fluids pressure, like oil, fuel or hydraulic circuits. Available at different pressure levels, from 1 up to 25 MPa. The kit includes a mating part connector. Small and fast-responsive, it is extremely reliable in harsh motorsport conditions.

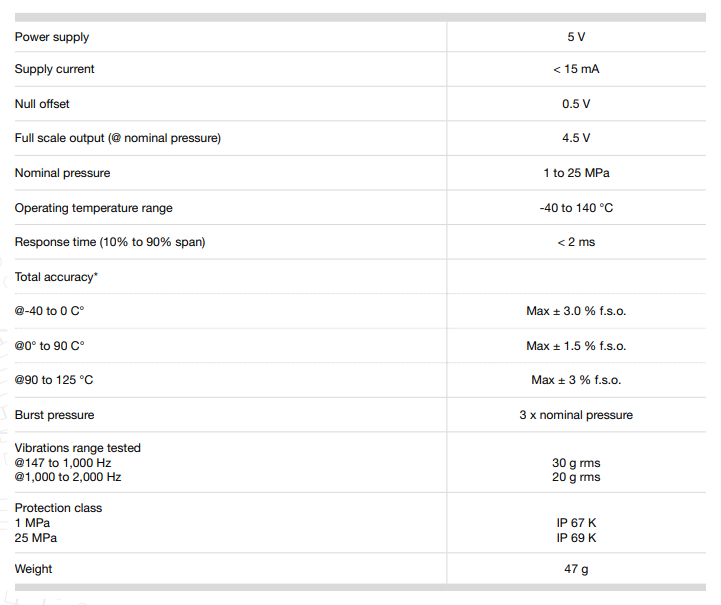

TECHNICAL CHARACTERISTICS
