PB-3000 Brushless Fuel Lift Pump

Features

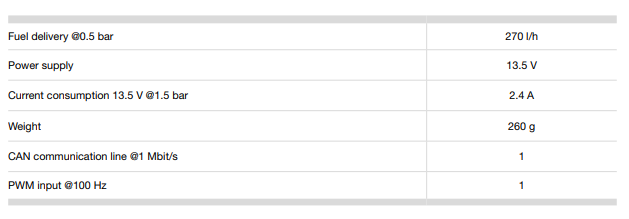

Fuel delivery @0.5 bar:

270 l/h

Power supply:

13.5 V

Current consumption 13.5 V @1.5 bar:

2.4 A

Weight:

260 g

CAN communication line @1 Mbit/s:

PWM input @100 Hz:

Product Overview

Brushless Fuel Lift Pump
0.5 bar - 270 l/h

MAIN FEATURES

• Up to 270 l/h fuel delivery @0.5 bar
• Integrated motor controller
• Special design and surface treatment for
reliable operations
• Advanced strategy through MWM/CAM
• Status monitoring and diagnostics via CAN

DESCRIPTION

The PB-3000 is a compact, lightweight, low pressure and self-priming Fuel Pump for catchtank filling. The presence of a Non-return valve allows to prevent catchtank emptying. Special design and surface treatment of moving parts allow reliable operations even in case of partially-empty tanks. It incorporates a rugged brushless motor with an integrated controller for reliable operations, ensuring limited current absorption and extended operating life, even in case of aggressive fuel components. Inlet and outlet ports are customizable.
