Features
Product Overview
Brushless Fuel Feed Pump
10 bar - 115 l/h
MAIN FEATURES
• Up to 115 l/h fuel delivery @10 bar
• Works @13.5 V
• Integrated motor controller
• Status monitoring and diagnostics via CAN
• Fuel on demand and pressure control
strategies
DESCRIPTION
The TFP-F is a compact, lightweight, positive displacement pump, specifically designed for motorbike applications. It incorporates a rugged brushless motor with an integrated controller for reliable operations, ensuring limited current absorption and extended operating life, even in case of aggressive fuel components. It can be used stand-alone or primed by a lift pump for highly volatile fuels. Inlet and
outlet ports are customizable on request.

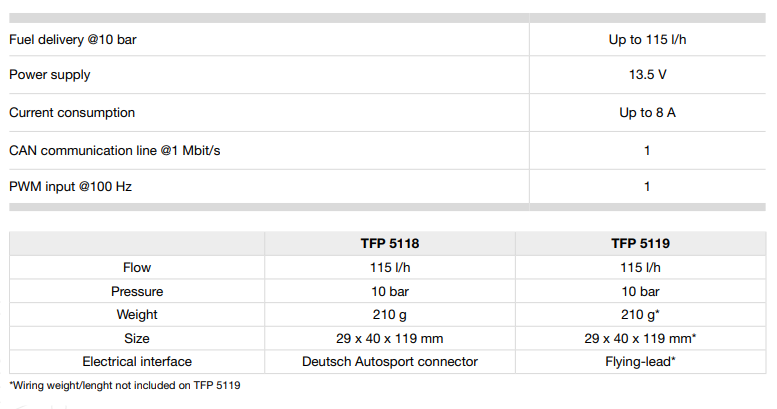

TECHNICAL CHARACTERISTICS

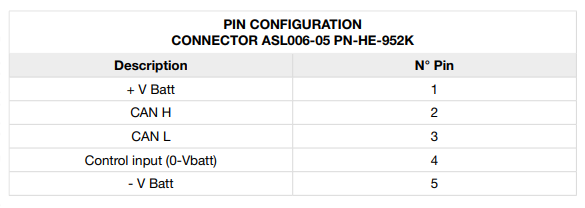

CONNECTOR PIN OUT

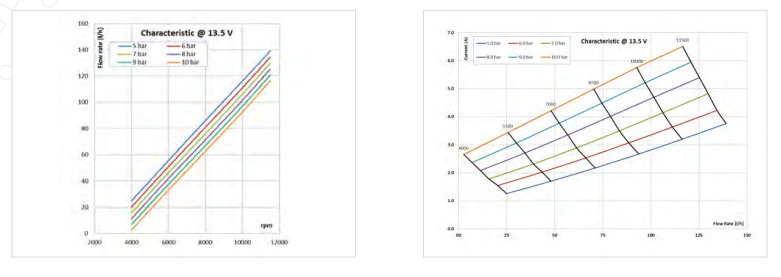

TYPICAL PERFORMANCE @13.5 V
