PS-2100 Fuel Lift Pump

Features

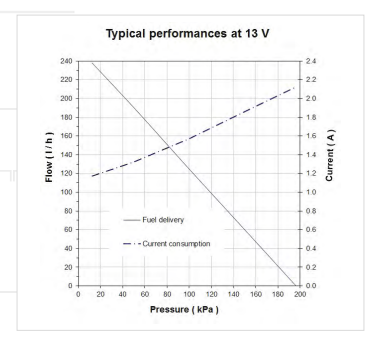

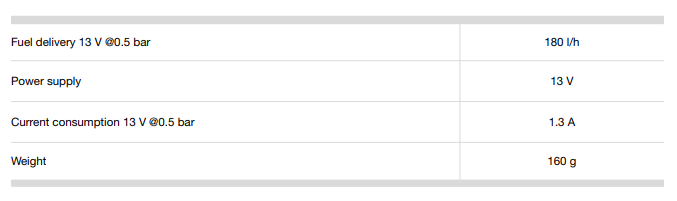

Fuel delivery 13 V @0.5 bar:

180 l/h

Power supply:

13 V

Current consumption 13 V @0.5 bar:

1.3 A

Weight:

160 g

Product Overview

Fuel Lift Pump
0.5 bar - 180 l/h

MAIN FEATURES

• Up to 180 l/h fuel delivery @0.5 bar
• Special design and surface treatment for
reliable operations

DESCRIPTION

The PS-2100 is a compact, lightweight, low pressure and self-priming Fuel Pump for catchtank filling. The presence of a Non-return valve allows to prevent catchtank emptying. Provided with a rugged DC motor for reliable operations with limited current absorption. Special design and surface treatment of moving parts allow reliable operations even in case of partially-empty tank. A sock filter must be applied to the inlet port. Inlet and outlet ports are customizable.
