TFP-E Brushless Fuel Feed Pump

Features

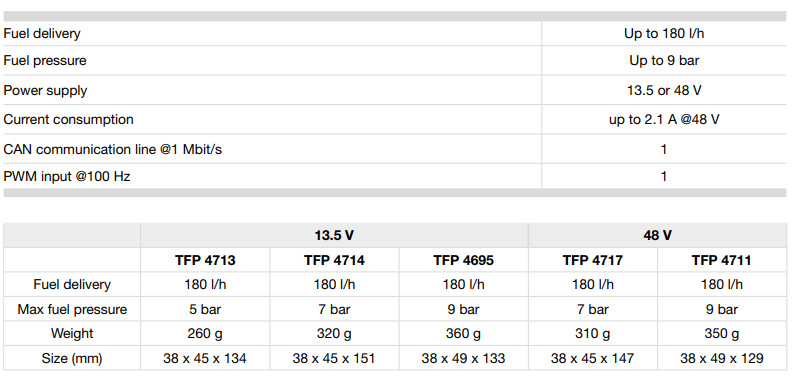

Fuel delivery:

Up to 180 l/h

Fuel pressure:

Up to 9 bar

Power supply:

13.5 or 48 V

Current consumption:

up to 2.1 A @48 V

CAN communication line @1 Mbit/s:

PWM input @100 Hz:

Product Overview

Brushless Fuel Feed Pump
Up to 180 l/h

MAIN FEATURES

• Up to 180 l/h fuel delivery
• Up to 9 bar fuel pressure
• Integrated motor speed controller for pump
flow rate control
• 48 V and 13.5 V options available
• Status monitoring and diagnostics via CAN
• Fuel on demand and pressure control
strategies

DESCRIPTION

The TFP-E is a lightweight, mid-pressure Fuel Pump for feeding the high pressure fuel pumps in GDI applications. It incorporates a rugged brushless motor with an integrated controller for reliable operations, ensuring limited current absorption and extended operating life, even in case of aggressive fuel components. The integrated motor speed controller allows pump flow rate control via CAN messages or PWM signal.
