Multi-Turn Sensor 0°- 1440°

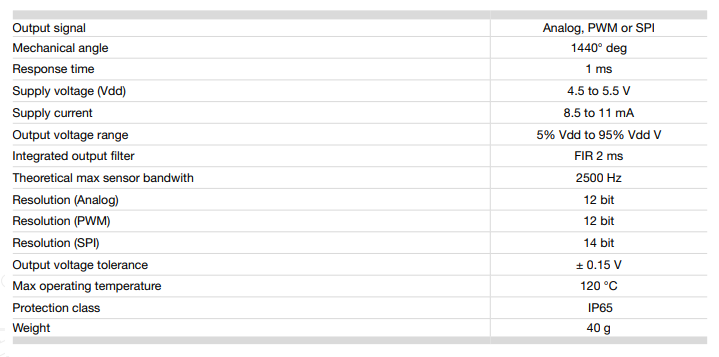

Features

Output signal:

Analog, PWM or SPI

Mechanical angle:

1440° deg

Response time:

1 ms

Supply voltage (Vdd):

4.5 to 5.5 V

Supply current:

8.5 to 11 mA

Output voltage range:

5% Vdd to 95% Vdd V

Integrated output filter:

FIR 2 ms

Theoretical max sensor bandwith:

2500 Hz

Resolution (Analog):

12 bit

Resolution (PWM):

12 bit

Resolution (SPI):

14 bit

Output voltage tolerance:

± 0.15 V

Max operating temperature:

120 °C

Protection class:

IP65

Weight:

40 g

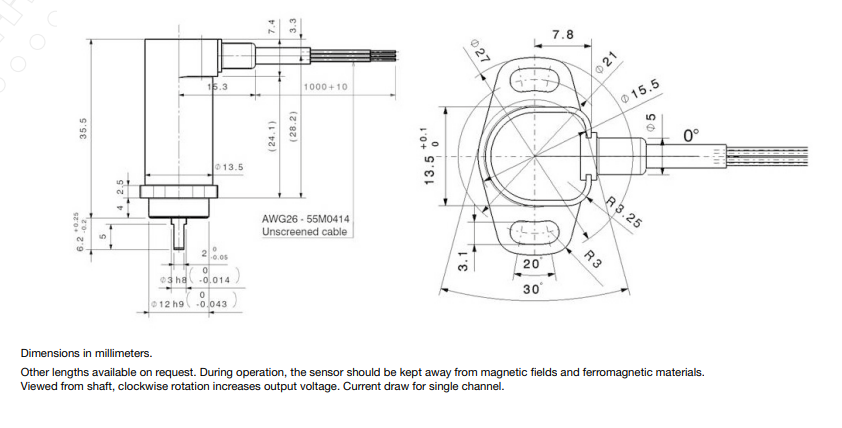

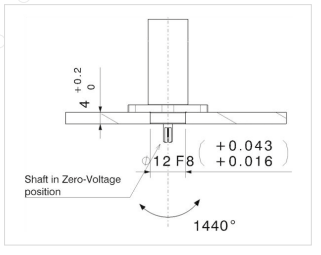

Product Overview

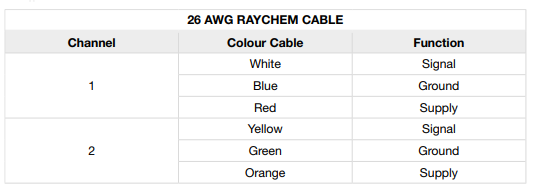

Twin Output Sensor

MAIN FEATURES

• Fully redundant outputs
• High resistant to extreme vibrations
• Maximum operational speed 3000 rpm
• Up to 5 calibration points on request

DESCRIPTION

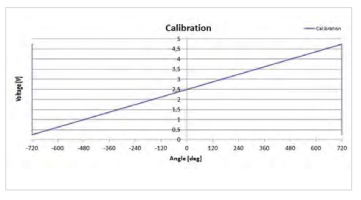

The Rotary Hall Sensor is an electrical contactless rotary position sensor based on a Hall effect sensing element and a rotating magnet. Built to be compact and rugged, it is composed of an anodized Aluminium alloy case and a stainless-steel shaft. Suitable for installation in tight spaces and highly resistant to extreme vibrations, it also incorporates a dual-stage output for redundancy. The channels are programmable, either electrically offset or completely overlaid for backup. It is powered by a 5 V voltage reference and provides linearly variable output voltage proportional to the angle, up to 1440°. The shaft is free to rotate through multiple turns without causing damage, as there are no internal end stops. Different case shapes and shaft interfaces are available on request.
