Hall Rotary Sensor 0°- 360°

(No reviews yet) Write a Review

Contact us at: sales@racing-tech.net

SKU:
83813519800
Availability:
On Request
Weight:
1.00 Ounces

Features

Output signal:
Analog, PWM or SPI
Mechanical angle:
360° deg
Response time:
1 ms
Supply voltage (Vdd):
8.5 to 11 mA
Output voltage range:
5% Vdd to 95% Vdd V
Integrated output filter:
FIR 2 ms
Theoretical max sensor bandwith:
2500 Hz
Resolution (Analog):
12 bit
Resolution (PWM):
12 bit
Resolution (SPI):
14 bit
Output voltage tolerance:
± 0.15 V
Max operating temperature:
120 °C
Protection class:
IP65
Weight:
30 g

Product Overview

Twin Output Sensor

MAIN FEATURES

• Available customizable electrical output from
0° to 360°
• Splash resistant to oil and fuel
• Maximum operational speed 3,000 rpm
• Up to 5 calibration points on request

DESCRIPTION

The Rotary Hall Sensor is an electrical contactless rotary position sensor based on a Hall effect sensing element and a rotating magnet. Built to be compact and rugged, it is composed of an anodized Aluminum alloy case and a stainless-steel shaft. Suitable for installation in tight spaces and extremely resistant to extreme vibrations, it also incorporates a dual-stage output for redundancy. The channels are programmable, either electrically offset or completely overlaid for backup. It is powered by a 5 V
voltage reference and provides linearly variable output voltage in proportion to the angle, up to 360°. The shaft is free to rotate through multiple turns without causing damage, as there are no internal end stops. Different case shapes and shaft interfaces are available on request.

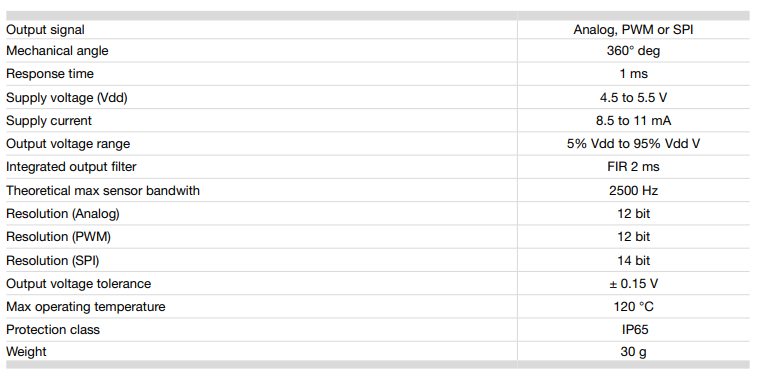

TECHNICAL CHARACTERISTICS

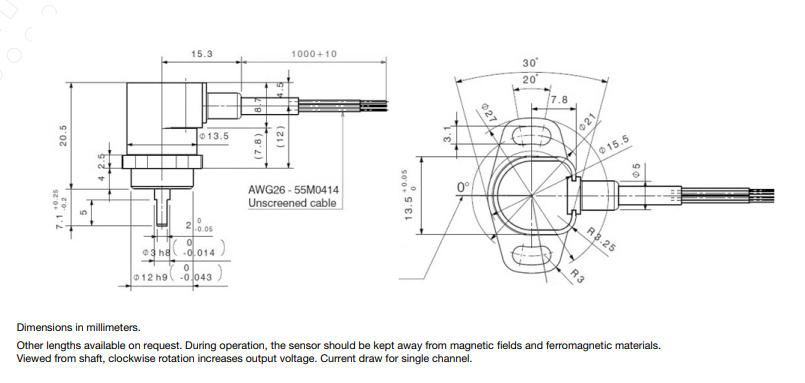

CABLE AND CONNECTION DEFINITION

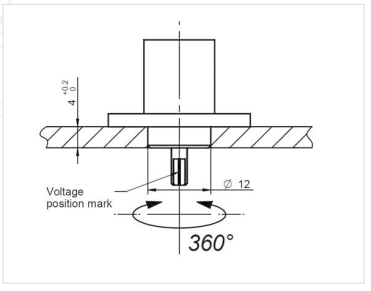

APPLICATION SCHEMATICS

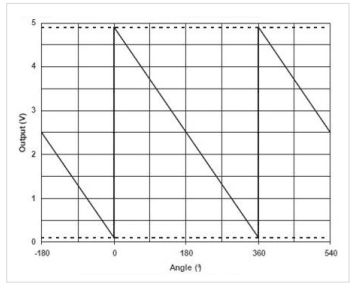

OUTPUT SIGNAL
