DIP-120 Dual Inertial platform with Bank angle algortihm

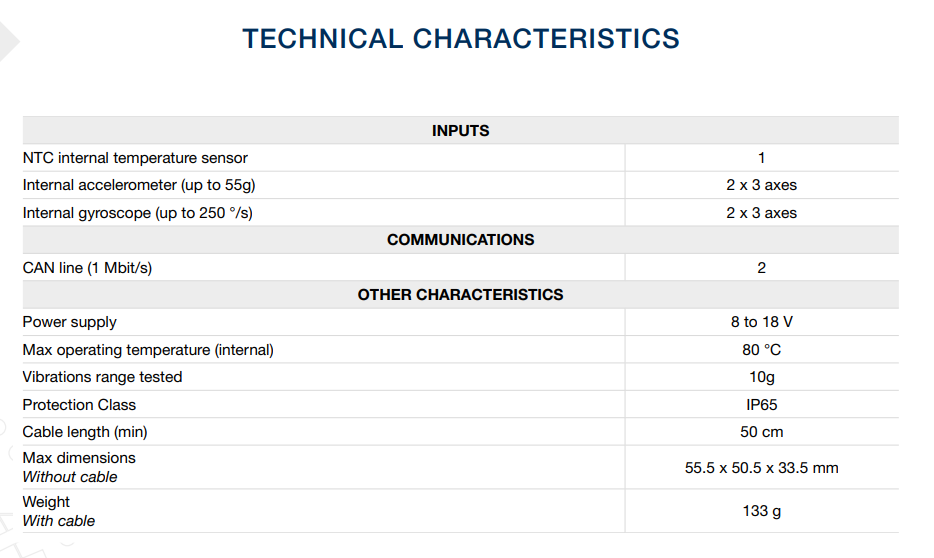

Features

NTC internal temperature sensor:

Internal accelerometer (up to 55g):

2 x 3 axes

Internal gyroscope (up to 250 °/s):

2 x 3 axes

CAN line (1 Mbit/s):

Power supply:

8 to 18 V

Max operating temperature (internal):

80 °C

Vibrations range tested:

10g

Protection class:

IP65

Cable length (min):

50 cm

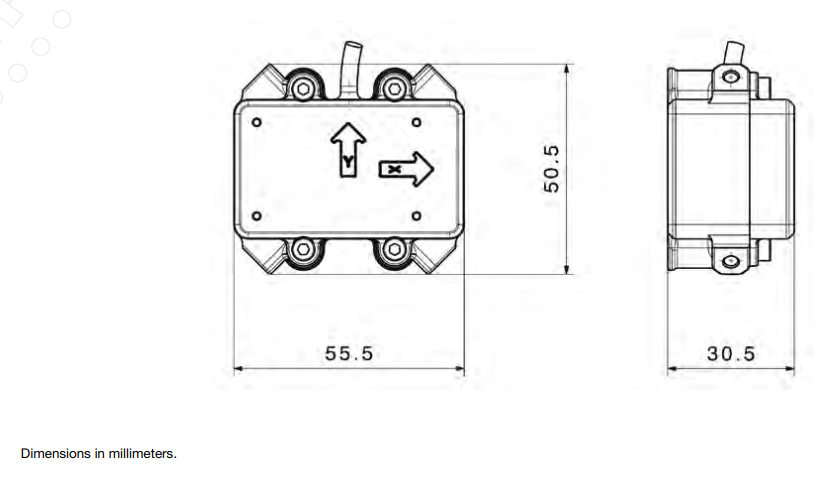

Max dimensions Without cable:

55.5 x 50.5 x 33.5 mm

Weight With cable:

133 g

Product Overview

Dual inertial platform

MAIN FEATURES
• 2 x 3-axial accelerometers (up to 55g)
• 2 x 3-axial gyroscopes (up to 250 °/s)
• 2 CAN lines

DESCRIPTION

The DIP-120 is a dual inertial platform, previous to the IPS-160 model, and is provided with two systems with 3-axial accelerometers and 3-axial gyroscopes each. The voltage supply and communication line have also been doubled, providing a fully redundant system. It can be used in car and motorbike racing applications. In the event of motorbike application, bank angle estimation can be carried out. Measurement must be supported by vehicle speed information supplied to the device via CAN line.

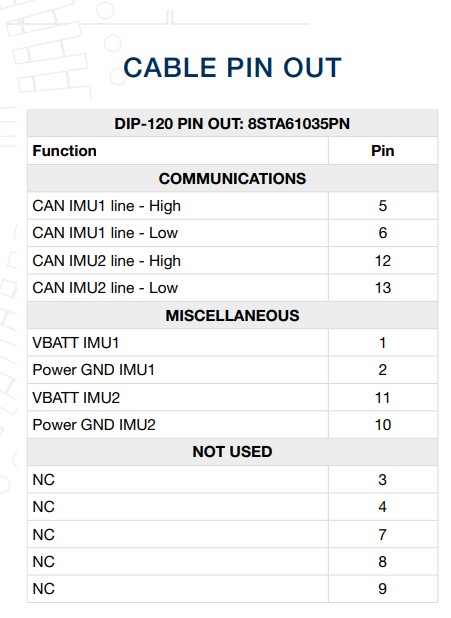

INSTALLATION

Mounting
• It is suggested to fix the case by the use of silent block or Velcro for shock absorbing.
• It is suggested to be mounted as closed as possible to the Centre Of Gravity (COG). Orientation
• Main surface must be parallel to the ground.
• X, Y and Z axis directions must be respected, as shown on module case.

NOTE: the described orientation is mandatory for proper
computation of bank angle.
