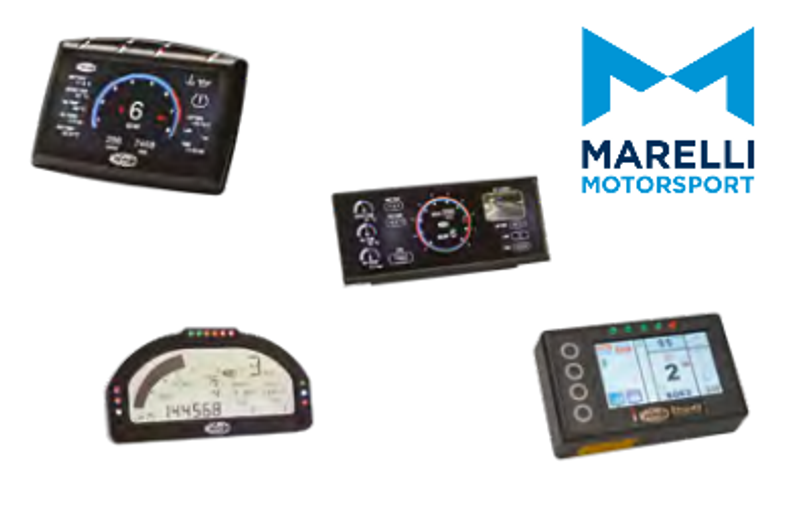

Comparison between Displays of Marelli brand.
|
|
|
|
|
|
| TYPE | FBO6 | FBO8 | MDU-232 | MPDU |
|---|---|---|---|---|
| DISPLAY | ||||
| RESOLUTION | 800 x 480 RGB Transmissive | 1,280 x 480 RGB Transmissive | ||
| VISIBLE AREA | 98.7 x 57.5 mm | 209 x 78.5 mm | 164 x 67.5 mm | 98.7 x 57.5 mm |
| DIMENSIONS | 6.5" | 8" | 4.3" | |
| VIDEO |
1 analog camera input 1 FPD Link video stream input 1 Secondary Display 720p HD (external) 8bit LVDS 1 Secondary Display 1280p HD (external) VGA |
1 analog camera input 1 FPD Link video stream input HD Video data stream input 1 Secondary Display 720p HD (external) |
||
| INPUTS | ||||
| ANALOGUE SINGLE-ENDED | Up to 4 | Up to 6 | 6 | 6 |
| INTERNAL GPS | 1 | 1 | - | 1 |
| DIGITAL INPUT | Up to 4 | Up to 4 | 2 | 2 |
| OUTPUTS | ||||
| VOLTAGE REFERENCES | 1 | 1 | 1 | 1 |
| LEDS | ||||
| LED TYPES | 4 Blue Alarm LEDs | 4 Red-Green-Blue Alarm LEDs |
2 Green gear shift LEDs
2 Yellow gear shift LEDs 2 Red gear shift LEDs 1 Yellow alarm LED 5 RGB functions LEDs |
4 Green RPM shift LEDs 2 Red RPM shift LEDs 4 Blue Alarm LEDs |
| OTHER CHARACTERISTICS | ||||
| COMMUNICATIONS |
2 CAN lines 1 Ethernet line 1 USB (2.0 HOST) high speed 1 802.11a/b/g/n Wi-Fi 5 GHz (internal antenna) 1 BT/BT Low Energy 4.0 (internal antenna) 1 RS232 line |
2 CAN lines
1 Ethernet line 1 USB (2.0 HOST) high speed 1 802.11a/b/g/n Wi-Fi 5 GHz (internal antenna) 1 BT/BT Low Energy 4.0 (internal antenna) 1 RS232 line |
2 CAN lines 1 Ethernet line |
2 CAN lines 1 Ethernet line 1 USB (2.0 HOST) high speed 1 RS232 line |
| POWER SUPPLY | 8 to 16 V | 8 to 16 V | 8 to 16 V | 8 to 16 V |
| PROTECTION CLASS | IP64 | Not applicable | IP54 | IP40 |
| DIMENSIONS | 184 x 139.4 x 37.5 mm Without wiring | 222.5 x 113 x 50.8 mm Without wiring | 202 x 105 x 19 mm Without connector | 155 x 95 x 30 mm Without wiring |
| WEIGHT | 505 g | 530 g | 400 g | 505 g |
| MORE INFO |
View Product |
View Product | View Product | View Product |
All these products are available in our store, contact us if you require more information.
