BAE-709C Ignition coil

(No reviews yet) Write a Review
$439.52
SKU:
BAE-709C
Availability:
On Request
Weight:
8.00 Ounces
BAE-709C Ignition coil
Adding to cart… The item has been added

Features

Nominal supply voltage:
6-16 V
Primary current:
7.3 A
Dwell time:
2.6-3.2 ms
Rise time (2-15 KV @1 MΩ//20 pF):
8 μs
Secondary voltage (1 MΩ//20 pF):
≥ 27 kV
Spark current (Zener 800 V):
60-100 mA
Spark duration (Zener 800 V):
≥ 2 ms
Spark energy (Zener 800 V):
70 mJ
Weight:
240 gr

Product Overview

Ignition coil for middle-end applications

MAIN FEATURES

• ≥ 27 kV secondary voltage
• 70 mJ spark energy
• 60-100 mA spark current

DESCRIPTION

In addition to being compact and easy to install, this ignition coil is capable of providing high spark energy. Supplied with an integrated plastic connector and a lateral mounting bracket, it requires no other mounting elements and is suitable for a wide range of applications. Contact the factory for other options regarding the position of the mounting bracket and the length and shape of the connector.

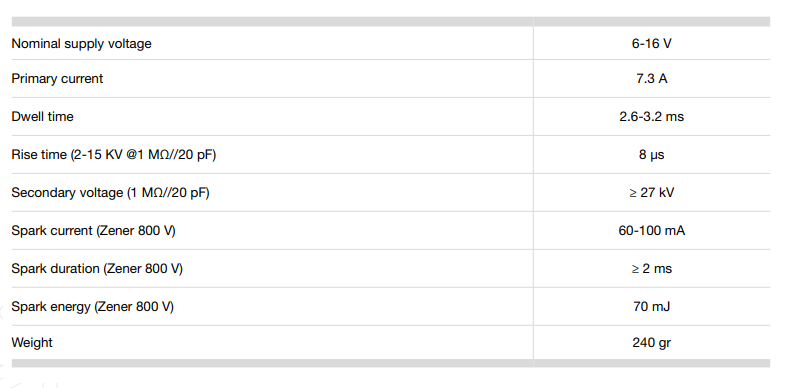

PERFORMANCE TABLE
