C31 mJ Customizable pencil coil

(No reviews yet) Write a Review
$337.68
SKU:
83805307400
Availability:
On Request
Weight:
4.00 Ounces
Adding to cart… The item has been added

Features

Diameter:
20 mm
Secondary voltage:
31 kV
Spark energy:
31 mJ
Spark current:
250 mA
Max weight:
110 g

Product Overview

Customizable pencil coil
Ø 20 mm

MAIN FEATURES

• 31 kV secondary voltage
• 31 mJ spark energy
• 250 mA spark current
• 110 g max weight

DESCRIPTION

The distinguishing feature of this pencil ignition coil is that it is particularly suitable for customized applications. Designed and manufactured in-house, this coil can be produced with customized length on customer’s request. Its compactness and lightness and the use of rubber
also facilitate installation, even with custom engines, as it requires no additional connector.

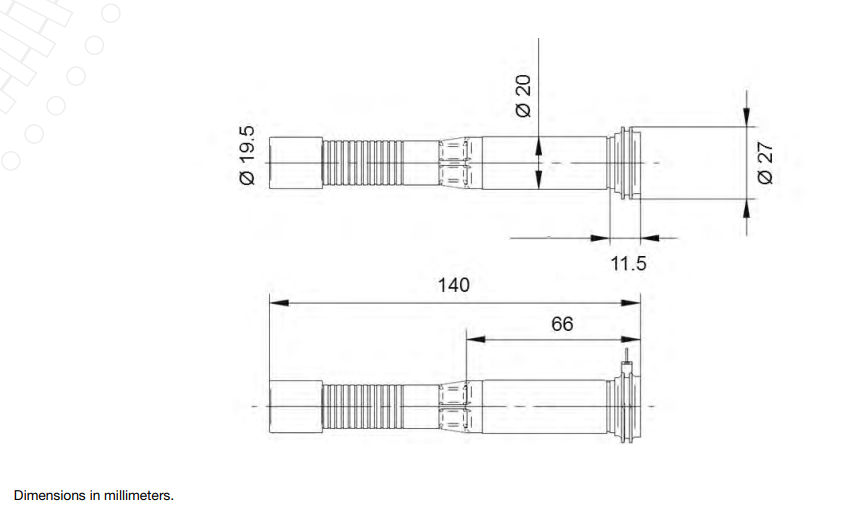

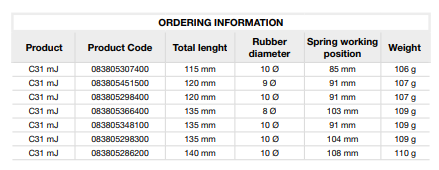

This pencil coil is available with modular length and different weight: min 115 mm/106 g, max 140 mm/110 g. In the drawing above is indicated the max length. In addition, the internal rubber diameter and the spring working position may be subject to change according to the different length and weight. The final tip can be also adapted to various spark plug diameters. Please contact the factory for further specifications.

PERFORMANCE TABLE

Measured at: T = 23.5 °C; V Zener = 1000 V; Load = 0.5 MΩ; V clamp = 400 V.
Electrical parameters may change according to the specific coil installation.
Coil can be driven also at 48 V.
