Product Overview
Pencil ignition coil for middle-end applications
MAIN FEATURES
• 30 kV secondary voltage
• 50 mJ spark energy
• 120 mA spark current
DESCRIPTION
This pencil ignition coil has been designed for direct mounting on the cylinder head and is characterized by the presence of a rubber boot which avoids the need for high voltage cables or additional connectors. The small size and easy installation (due to the lateral mounting bracket), are among its main benefits. Contact the factory for other options concerning the position of the mounting bracket and the shape and length of the connector.

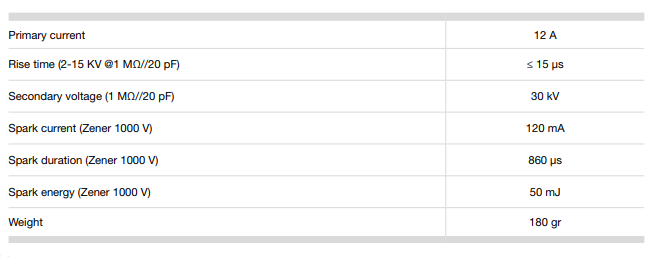

PERFORMANCE TABLE

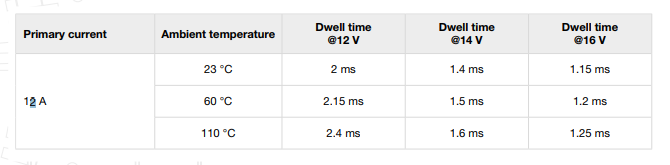

TEMPERATURE SENSITIVITY TABLE
Dwell time to obtain 12 A charge at different voltage levels: 12-14-16 V.
Electrical parameters may change according to the specific coil’s installation
