VCU-320 High performance Vehicle Control Unit

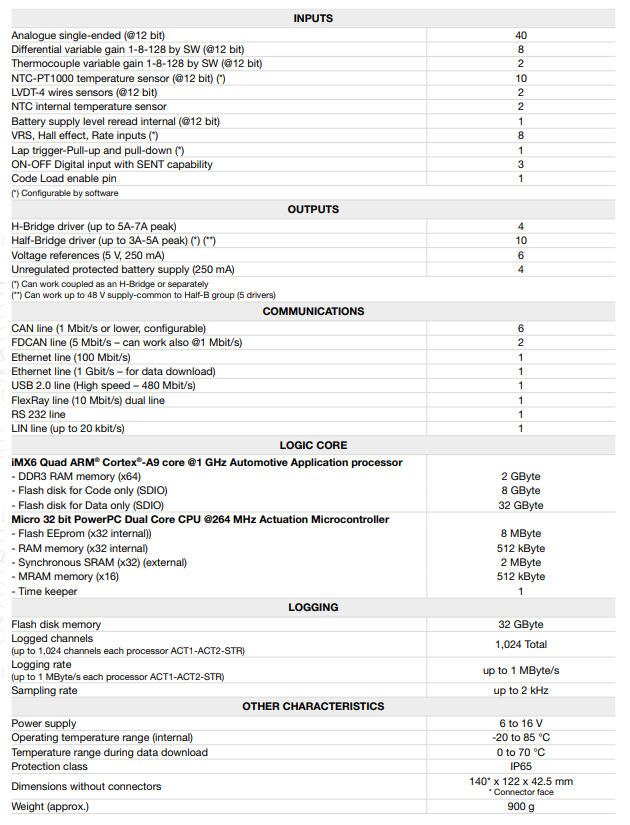

Features

Analogue single-ended (@12 bit):

Differential variable gain 1-8-128 by SW (@12 bit):

Thermocouple variable gain 1-8-128 by SW (@12 bit):

NTC-PT1000 temperature sensor (@12 bit):

LVDT-4 wires sensors (@12 bit):

NTC internal temperature sensor:

Battery supply level reread internal (@12 bit):

VRS, Hall effect, Rate inputs:

Lap trigger-Pull-up and pull-down:

ON-OFF Digital input with SENT capability:

Code Load enable pin:

H-Bridge driver (up to 5A-7A peak):

Half-Bridge driver (up to 3A-5A peak):

Voltage references (5 V, 250 mA):

Unregulated protected battery supply (250 mA):

CAN line (1 Mbit/s or lower, configurable):

FDCAN line (5 Mbit/s – can work also @1 Mbit/s):

Ethernet line (100 Mbit/s):

Ethernet line (1 Gbit/s – for data download):

USB 2.0 line (High speed – 480 Mbit/s):

FlexRay line (10 Mbit/s) dual line:

RS 232 line:

LIN line (up to 20 kbit/s):

Flash disk memory:

32 GByte

Logged channels:

1,024 Total

Logging rate:

up to 1 MByte/s

Sampling rate:

up to 2 kHz

Power supply:

6 to 16 V

Operating temperature range (internal):

-20 to 85 °C

Temperature range during data download:

0 to 70 °C

Protection class:

IP65

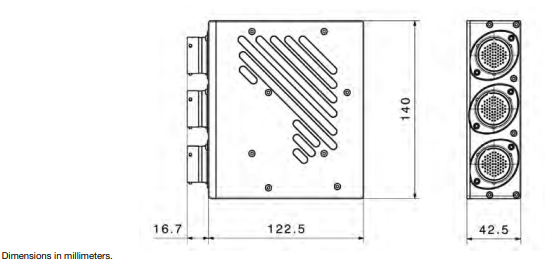

Dimensions without connectors:

140* x 122 x 42.5 mm

Weight (approx.):

900 g

Product Overview

High performance Vehicle Control Unit with internal data logger

MAIN FEATURES

• 40 single-ended inputs
• 10 PT1000-NTC inputs
• 8 differentials (large CMVR)
• 8 frequency inputs, VRS/Hall/Rate
• 1 lap trigger / 3 digital inputs
• 4 H-Bridge and 10 Half-Bridge (can manage 48 V loads)
• 8 CAN lines 2.0B (2 FDCAN @5Mbit/s)
• 1 Ethernet line (100 Mbit/s) and 1 Ethernet line (1Gbit/s)
• 1 FlexRay line (10Mbit/s) and 1 LIN line (20 kbit/s)
• 1 USB 2.0 High speed (480 Mbit/s)
• 32 GByte internal storage for data logger

DESCRIPTION

In the wake of the emerging electrification trend, Marelli Motorsport expands its series of control units with the VCU-320, a brand new device fully devoted to electric vehicles. The VCU-320 Vehicle Control Unit is a powerful and complete concentrated system capable of managing high performance electric chassis vehicle. It incorporates a powerful data acquisition unit tailored to racing applications, which require high-resolution data, high bandwidth and a large number of channels. The unit can drive a large number of additional loads through H-Bridge and Half-Bridge. Half-Bridge can manage loads up to 48 V. The communications capability is assured by 8 CAN lines, 1 Ethernet line (100 Mbit/s) for data transfer to other units and a 1 Ethernet line (1 Gbit/s) for fast data download.
The logic architecture consists of a powerful Quadcore automotive processor for data logging, telemetry and communications, while a high performance DualCore microcontroller manages calculation, control and actuation. For a total computation, power of over 2,500 Dhrystone MIPS. The VCU-320 is equipped with a variety of analogue inputs including single-ended, temperatures and differentials, together with digital inputs for lap trigger, VRS-Hall and Hall-Rate inputs.
