SRT-E Powerful and compact Engine Control Unit

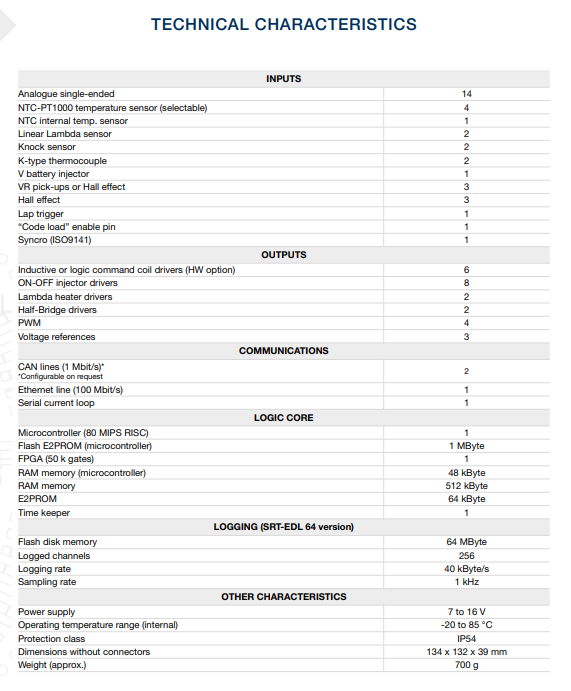

Features

Analogue single-ended:

NTC-PT1000 temperature sensor (selectable):

NTC internal temp. sensor:

Linear Lambda sensor:

Knock sensor:

K-type thermocouple:

V battery injector:

VR pick-ups or Hall effect:

Hall effect:

Lap trigger:

“Code load” enable pin:

Syncro (ISO9141):

Inductive or logic command coil drivers (HW option):

ON-OFF injector drivers:

Lambda heater drivers:

Half-Bridge drivers:

PWM:

Voltage references:

CAN lines (1 Mbit/s):

Ethernet line (100 Mbit/s):

Serial current loop:

Microcontroller (80 MIPS RISC):

Flash E2PROM (microcontroller):

1 MByte

FPGA (50 k gates):

RAM memory (microcontroller):

48 kByte

RAM memory:

512 kByte

E2PROM:

64 kByte

Time keeper:

Flash disk memory:

64 MByte

Logged channels:

256

Logging rate:

40 kByte/s

Sampling rate:

1 kHz

Power supply:

7 to 16 V

Operating temperature range (internal):

-20 to 85 °C

Protection class:

IP54

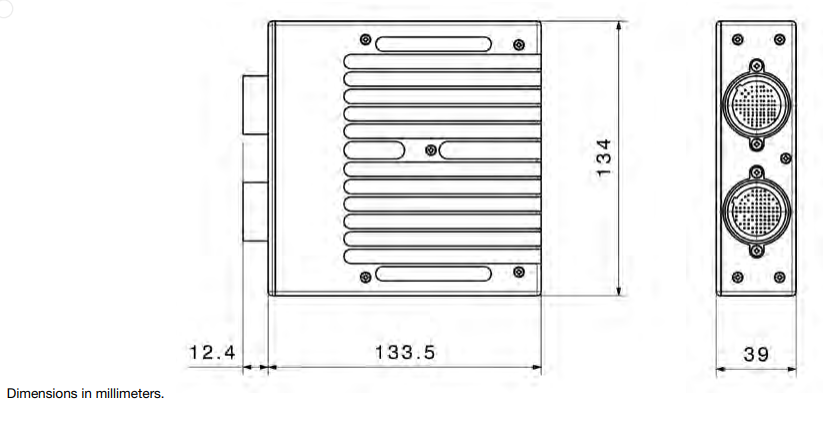

Dimensions without connectors:

134 x 132 x 39 mm

Weight (approx.):

700 g

Product Overview

Powerful and compact Engine Control Unit

MAIN FEATURES
• 14 single-ended inputs
• 3 frequency inputs, 3 VRS/Hall - 3 Hall/Rate
• 6 inductive or logic command ignition drivers (HW option)
• 8 ON-OFF injector drivers
• 2 Half-Bridge: DC-Motor driver for “Drive by Wire” control
• 4 PWM
• 2 Linear Lambda
• 2 knock inputs for detonation
• 2 CAN lines 2.0B
• 1 Ethernet line (100 Mbit/s)

DESCRIPTION

The SRT-E is a compact engine management system and data logger for race engines. The unit is an evolution of the SRA Engine Control Unit and has extended functionality with more robust external connections, increased communication capabilities and a higher number of inputs/outputs. It is capable of driving up to 8 injectors and 6 ignition coils, including logic command coils, and is compatible with a wide range of sensors and actuators. It contains a high performance RISC microcontroller and an FPGA for diagnostic purposes. It provides analogue
input for single-ended, temperature and knock sensors and an interface for a linear wide-band lambda sensor. The unit also provides 2 Half-Bridge output stages for use with suitable “Drive by Wire” or Trumpet Control actuators. 6 configurable speed sensor inputs (up to 3 Inductive),
provide full flexibility for configuration of engine-angle detection, as well as other frequency inputs such as wheel or shaft speed.

The ECU is also available in an SRT-EDL 64 version which
is provided with an internal 64 MByte data logger. Via an external Marelli module (DIM-141), the unit is also capable of driving GDI injectors and Diesel applications.
