MLE-340 Professional engine control unit with internal data logger

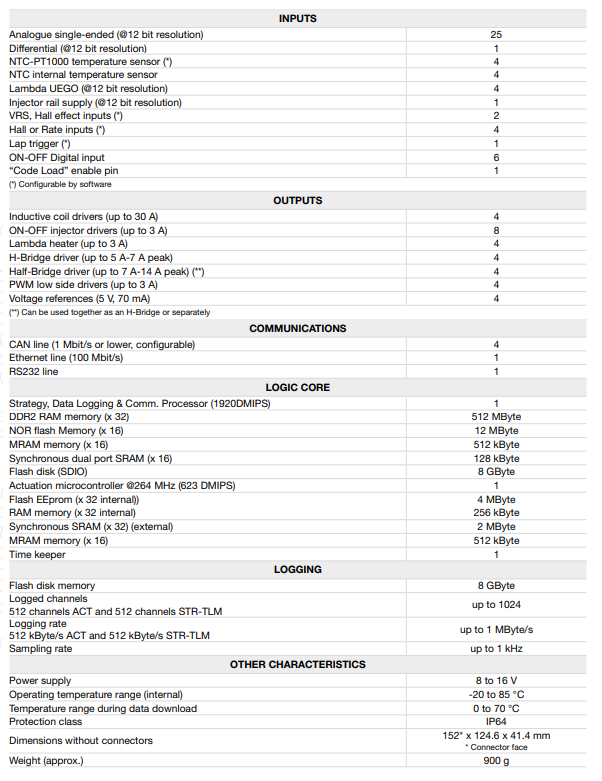

Features

Analogue single-ended (@12 bit resolution):

Differential (@12 bit resolution):

NTC-PT1000 temperature sensor:

NTC internal temperature sensor:

Lambda UEGO (@12 bit resolution):

Injector rail supply (@12 bit resolution):

VRS, Hall effect inputs:

Hall or Rate inputs:

Lap trigger:

ON-OFF Digital input:

“Code Load” enable pin:

Inductive coil drivers (up to 30 A):

ON-OFF injector drivers (up to 3 A):

Lambda heater (up to 3 A):

H-Bridge driver (up to 5 A-7 A peak):

Half-Bridge driver (up to 7 A-14 A peak):

PWM low side drivers (up to 3 A):

Voltage references (5 V, 70 mA):

CAN line (1 Mbit/s or lower, configurable):

Ethernet line (100 Mbit/s):

RS232 line:

Strategy, Data Logging & Comm. Processor (1920DMIPS):

DDR2 RAM memory (x 32):

512 MByte

NOR flash Memory (x 16):

12 MByte

MRAM memory (x 16):

512 kByte

Synchronous dual port SRAM (x 16):

128 kByte

Flash disk (SDIO):

8 GByte

Actuation microcontroller @264 MHz (623 DMIPS):

Flash EEprom (x 32 internal)):

4 MByte

RAM memory (x 32 internal):

256 kByte

Synchronous SRAM (x 32) (external):

2 MByte

Time keeper:

Flash disk memory:

8 GByte

Logged channels:

up to 1024

Logging rate:

up to 1 MByte/s

Sampling rate:

up to 1 kHz

Power supply:

8 to 16 V

Operating temperature range (internal):

-20 to 85 °C

Temperature range during data download:

0 to 70 °C

Protection class:

IP64

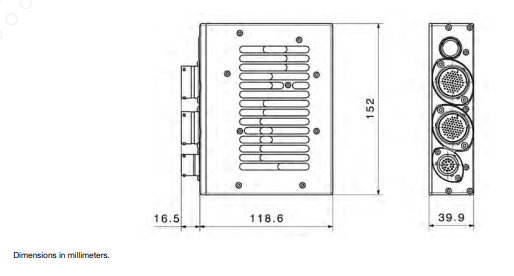

Dimensions without connectors:

152* x 124.6 x 41.4 mm

Weight (approx.):

900 g

Product Overview

Professional engine control unit with internal data logger

MAIN FEATURES

• 25 single-ended inputs
• 4 PT1000-NTC inputs
• 1 differential
• 6 frequency inputs, 2 VRS/Hall - 4 Hall/Rate
• 1 lap trigger / 6 digital inputs
• 4 channel Inductive ignition driver
• 8 ON-OFF injectors drivers
• 6 H-Bridge
• 4 Low Side driver with PWM capability
• 4 lambda UEGO sensors with heater
• 4 CAN lines 2.0B
• 1 Ethernet line (100 Mbit/s)
• 8 GByte internal storage for data logger

DESCRIPTION

The MLE-340 Engine and Vehicle Control Unit is a powerful and complete concentrated system capable of controlling high performance engines up to 4 cylinders. Suitable for motorbike applications. It incorporates a powerful data acquisition unit tailored to racing applications which require high resolution data, high bandwidth and a large number of channels. The unit can drive ON-OFF injectors, inductive
ignition coils and a large number of additional loads. The communications capability is assured by 4 CAN lines, 1 100 Mb/s Ethernet line for fast data download and data transfer to other units. The logic architecture consists of a powerful dual-core processor for data logging, telemetry and communications, while calculation, control and actuation are managed by a high performance microcontroller for a total computation power of over 2,500 Dhrystone MIPS. The MLE-340 is equipped with a variety of analogue inputs including single-ended, temperatures and differential together with digital inputs for lap trigger,
VRS/Hall and Hall/Rate inputs.
