IWPR Pico Racing Fuel Injector

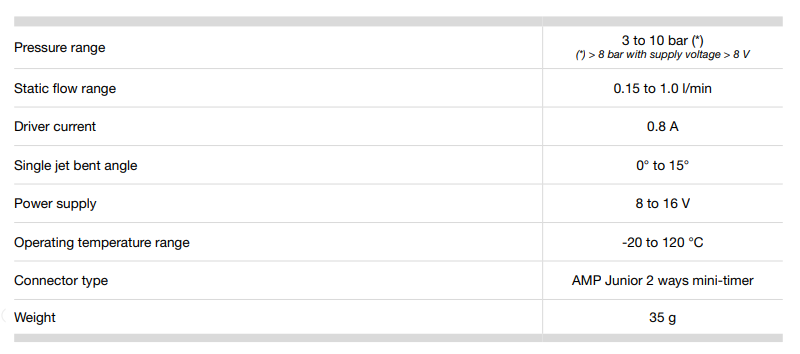

Features

Pressure range:

3 to 10 bar

Static flow range:

0.15 to 1.0 l/min

Driver current:

0.8 A

Single jet bent angle:

0° to 15°

Power supply:

8 to 16 V

Operating temperature range:

-20 to 120 °C

Connector type:

AMP Junior 2 ways mini-timer

Weight:

35 g

Product Overview

Pico Racing Fuel Injector
Up to 10 bar - Up to 1.0 l/min

MAIN FEATURES

• 3 to 10(*) bar pressure range
• 0.15 to 1.0 l/min static flow range
• 0.8 A driver current
(*) > 8 bar with supply voltage > 8 V

DESCRIPTION

The IWPR Pico Injector is a mass-production component, that thanks to its fast pulse response, high precision, high dynamic range and optimum fuel atomization, has been tested and selected also for racing applications. These features are achieved by a high performance ON-OFF actuating electromagnet with opposing expansion poles that moves an internal injector valve on high-precision ground cylindrical slides and a high precision nozzle. The injector has a stainless steel body, a fuel-resistant plastic
connector, martensitic stainless steel internal valve and an electromagnet with a low carbon content stainless steel armature. The electrical connection to the control unit is via a mini-timer plastic plug. It is available both in the standard configurations as well as customized in spray shape and in fuel flow and selected in narrow precision classes.
