BVRM-04 Small size Voltage Regulator

Features

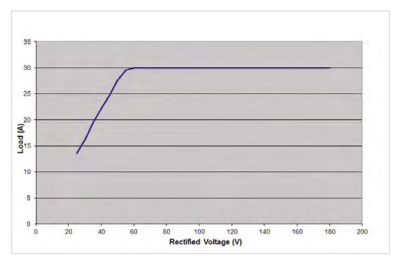

Maximum continuous output current:

30 A

Peak output current As peak we can consider 10 se, 35 A and following 50 sec 30 A load.:

35 A

Max continuous output power:

420 W

Nominal output voltage:

14 V

Output voltage ripple:

Protection class:

IP65

Operating temperature:

90 °C

Weight:

560 ± 50 g

Product Overview

Small size Voltage Regulator

MAIN FEATURES

• Output voltage settable from 10 V to 16 V
• 2 high side driver 20 A
• 1 high side driver 5 A
• 1 pulse Width Modulation output (low side
driver), 10 A - 20 kHz
• Load current, battery current and output/
input voltage internal signals

DESCRIPTION

The BVRM-04 is a compact lightweight voltage regulator for permanent magnet alternators. The device has a power box section which provides 4 power outputs controlled by an on board microprocessor. Internal signals of temperature, voltage and current are sampled and available for the ECU via CAN line. BVRM-04 provides a Pulse Width Modulation output software-controlled which can be used to reduce the load of the electrical fuel pump.
