A45 Permanent Magnet Alternator

Features

Application:

Bike

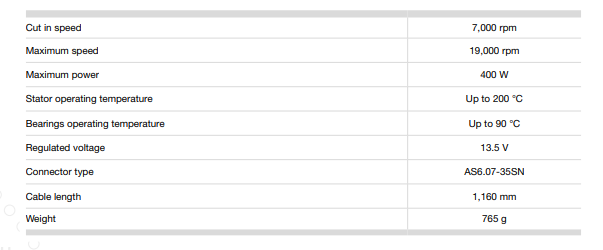

Cut in speed:

7,000 rpm

Maximum speed:

19,000 rpm

Maximum power:

400 W

Stator operating temperature:

Up to 200 °C

Bearings operating temperature:

Up to 90 °C

Regulated voltage:

13.5 V

Connector type:

AS6.07-35SN

Cable length:

1,160 mm

Weight:

765 g

Product Overview

Permanent Magnet Alternator
13.5 V - 30 A

MAIN FEATURES
• 30 A output
• 400 W max power
• 19,000 rpm max speed
• 765 g weight

The A45 is a lightweight, bi-directional Permanent Magnet Alternator for motorbike applications. The military-grade stator and the hand-wound wires increase efficiency, offering maximized performance in a very light and compact case. In-house design and manufacture allow
various possibilities for customization including the stator and the mechanical interface. In addition, different cable lengths and connector types are available on request from

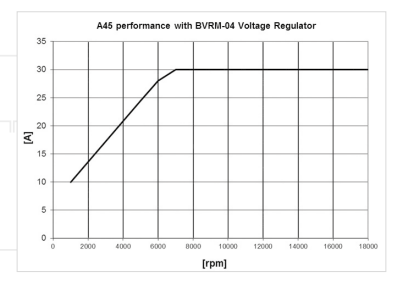

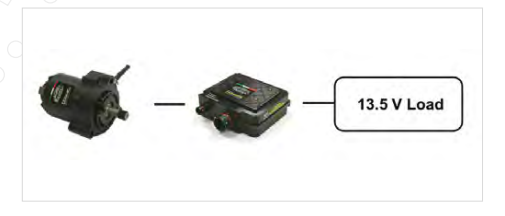

the client. When used together with the BVRM-04 Voltage Regulator, the alternator provides high current at stable voltage, over a wide range of rotation speeds.
