Inductive Speed Sensor

Features

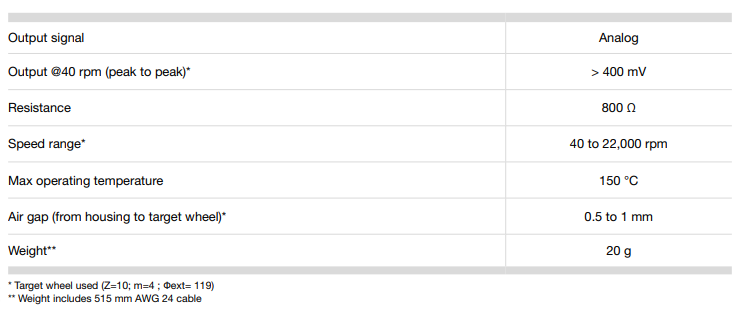

Output signal:

Analog

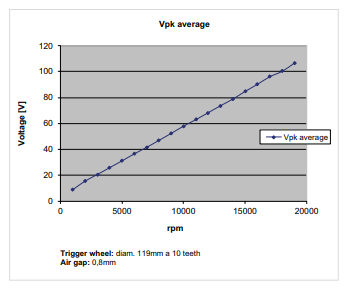

Output @40 rpm (peak to peak)*:

> 400 mV

Resistance:

800 Ω

Speed range*:

40 to 22,000 rpm

Max operating temperature:

150 °C

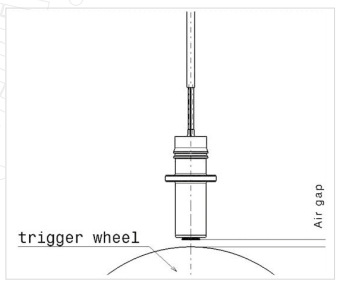

Air gap (from housing to target wheel)*:

0.5 to 1 mm

Weight:

20 g

Product Overview

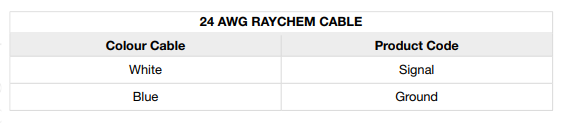

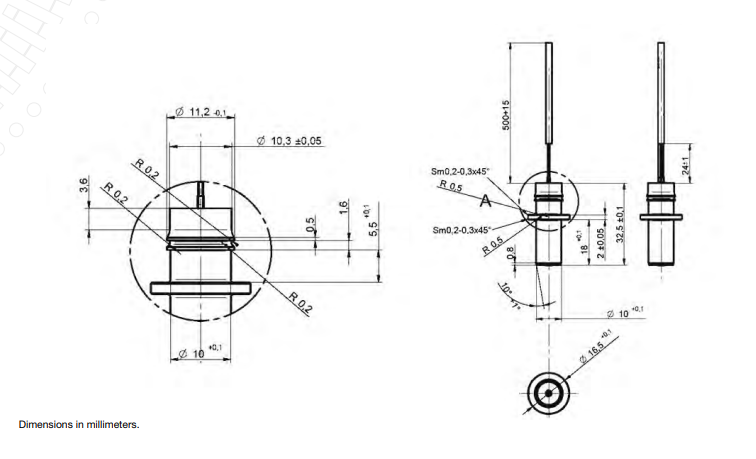

10 mm Inductive Sensor

MAIN FEATURES

• High resistance to severe vibrations
• Special HS copper alloy leads for increased
reliability
• Splash resistant to oil and fuel
• 22,000 rpm max detectable frequency

DESCRIPTION

A Variable Reluctance sensor for detecting the rotation speed of toothed wheels that generates an analog output signal and doesn’t need a power supply. A rare earth magnet and high permeability core allow signal detection with large air gaps and at low speeds. Suitable for crank, camshaft and wheel speed detection.
