Features
Product Overview
Electric Shaft Actuator
MAIN FEATURES
• Compact and light
• Easy to install
• High push/pull force
• Integrated shaft position sensor
• Low maintenance
DESCRIPTION
The ESA is the latest in a series of compact and light electric push/pull actuator to be coupled with the ratchet in a sequential gearbox as a replacement for the normal input lever. Designed and manufactured in-house, the ESA can be controlled by either the FOX-442 Power Distribution Unit or by the GCC-110 Electronic Control Unit and performs quick up-shifting and down-shifting, as well as “half-shift” to select neutral (if required).

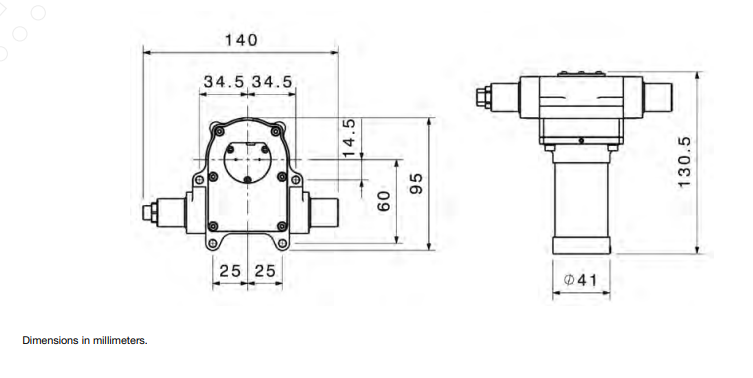

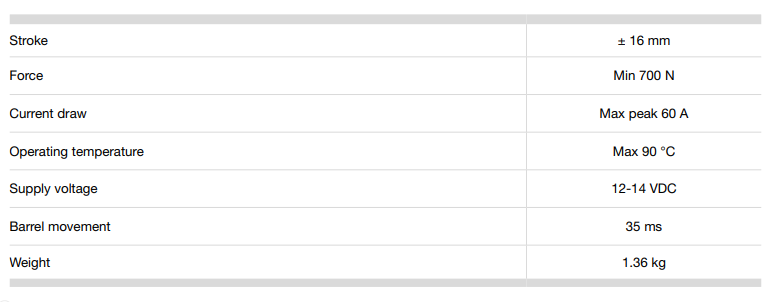

TECHNICAL CHARACTERISTICS

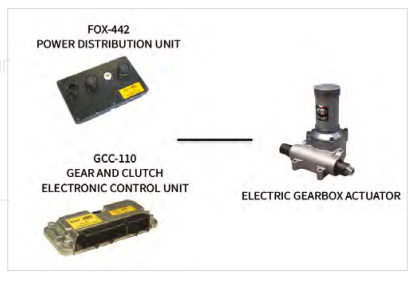

APPLICATION SCHEMATICS
