AMC 6 ENC Engine control system mapping device (6 encoders)

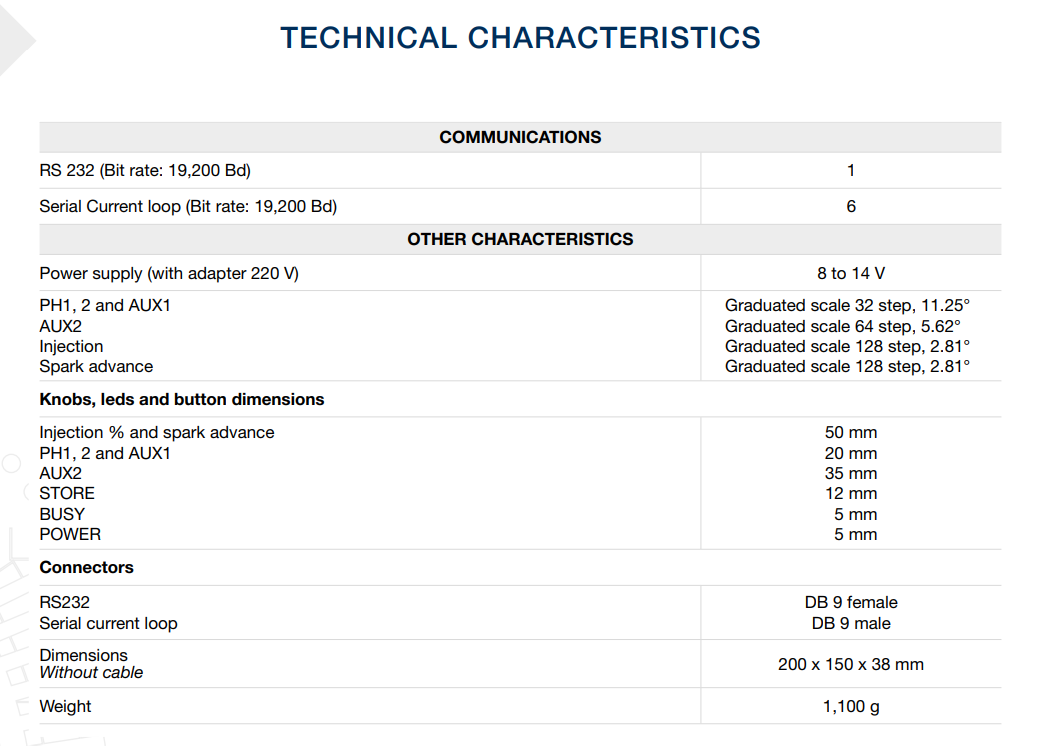

Features

RS 232 (Bit rate: 19,200 Bd):

Serial Current loop (Bit rate: 19,200 Bd):

Power supply (with adapter 220 V):

8 to 14 V

PH1, 2 and AUX1:

Graduated scale 32 step, 11.25°

AUX2:

Graduated scale 64 step, 5.62°

Injection:

Graduated scale 128 step, 2.81°

Spark advance:

Graduated scale 128 step, 2.81°

Injection % and spark advance:

50 mm

PH1, 2 and AUX 1:

20 mm

AUX 2:

35 mm

STORE:

12 mm

BUSY:

5 mm

POWER:

5 mm

RS232 Serial current loop:

DB 9 female DB 9 male

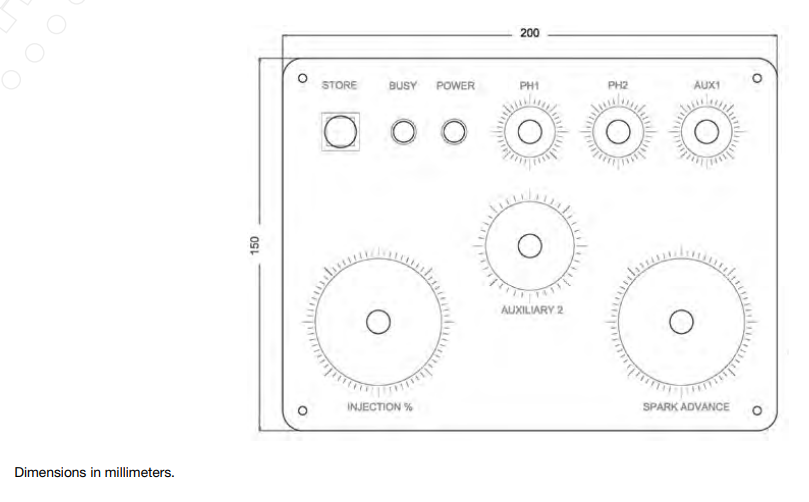

Dimensions Without cable:

200 x 150 x 38 mm

Weight:

1,100 g

Product Overview

6-encoder slew box

MAIN FEATURES
• Compatible with Marelli PC Tools
• Versatile in software programming of the encoders
• Direct interface with ECU

DESCRIPTION

The AMC 6 ENC slew box is a 6-encoder slew box allowing rapid and accurate calibration of basic engine parameters controlled by the Engine Control Unit. The device is programmable with a serial interface for connection to a PC: all potentiometers in fact are programmable with
our PC Tools. As default configuration, injection time and spark advance are adjusted with two large knobs allowing smooth and precise regulation, a big central one is reserved for additional regulations (e.g. turbo pressure), three little knobs are for injection phase of the high and low injection banks and additional function (AUX1), defined by the application software on specific requests. The encoders have the advantage that user doesn’t need to “zero” the knob position from one point to the next, allowing a faster engine mapping.
