SP-WRC2 Switch panel with 15 buttons with removable membrane

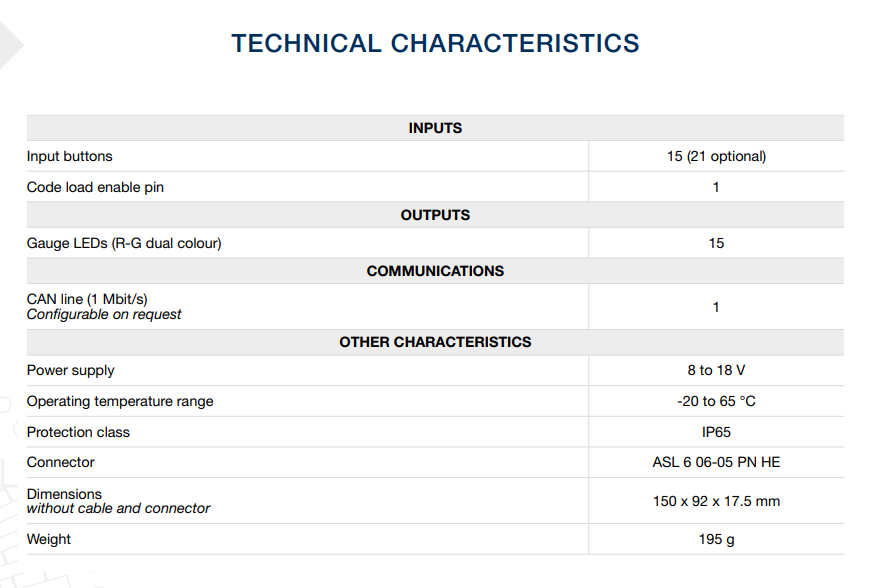

Features

Input buttons:

15 (21 optional)

Code load enable pin:

Gauge LEDs (R-G dual colour):

CAN line (1 Mbit/s) Configurable on request:

Power supply:

8 to 18 V

Operating temperature range:

-20 to 65 °C

Protection class:

IP65

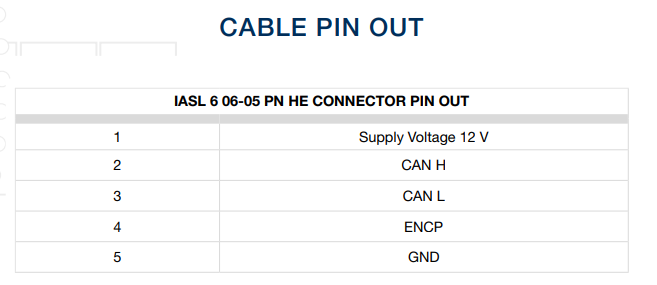

Connector:

ASL 6 06-05 PN HE

Dimensions without cable and connector:

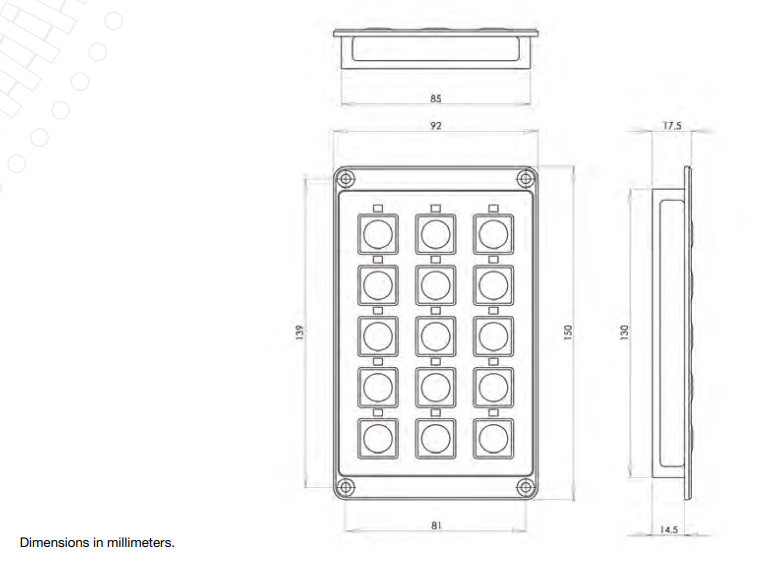

150 x 92 x 17.5 mm

Weight:

195 g

Product Overview

Switch panel with 15 buttons with removable membrane

MAIN FEATURES
• 15 membrane buttons with backlighting adjustable via CAN
• 15 LEDs with signal functions attached to buttons state: 3 colour-state (green-yellow-red)
• 1 CAN communication bus

DESCRIPTION

The SP-WRC2 enables intelligent control and diagnosis function of electric devices, including the Marelli power distribution units. Can be used in various applications, depending on software configurations. Easy to use and install, the backlit coloured-buttons and symbols can be fully customized according to customer’s requests. As optional features, also the buttons’ number may vary up to 21 units. This switch panel works perfectly in combination with the FOX-442 and the PDU12-42HD power units (see the Power Distribution Units section).
